2 Fold Filter Paper Folder
2 Fold Filter Paper Folder

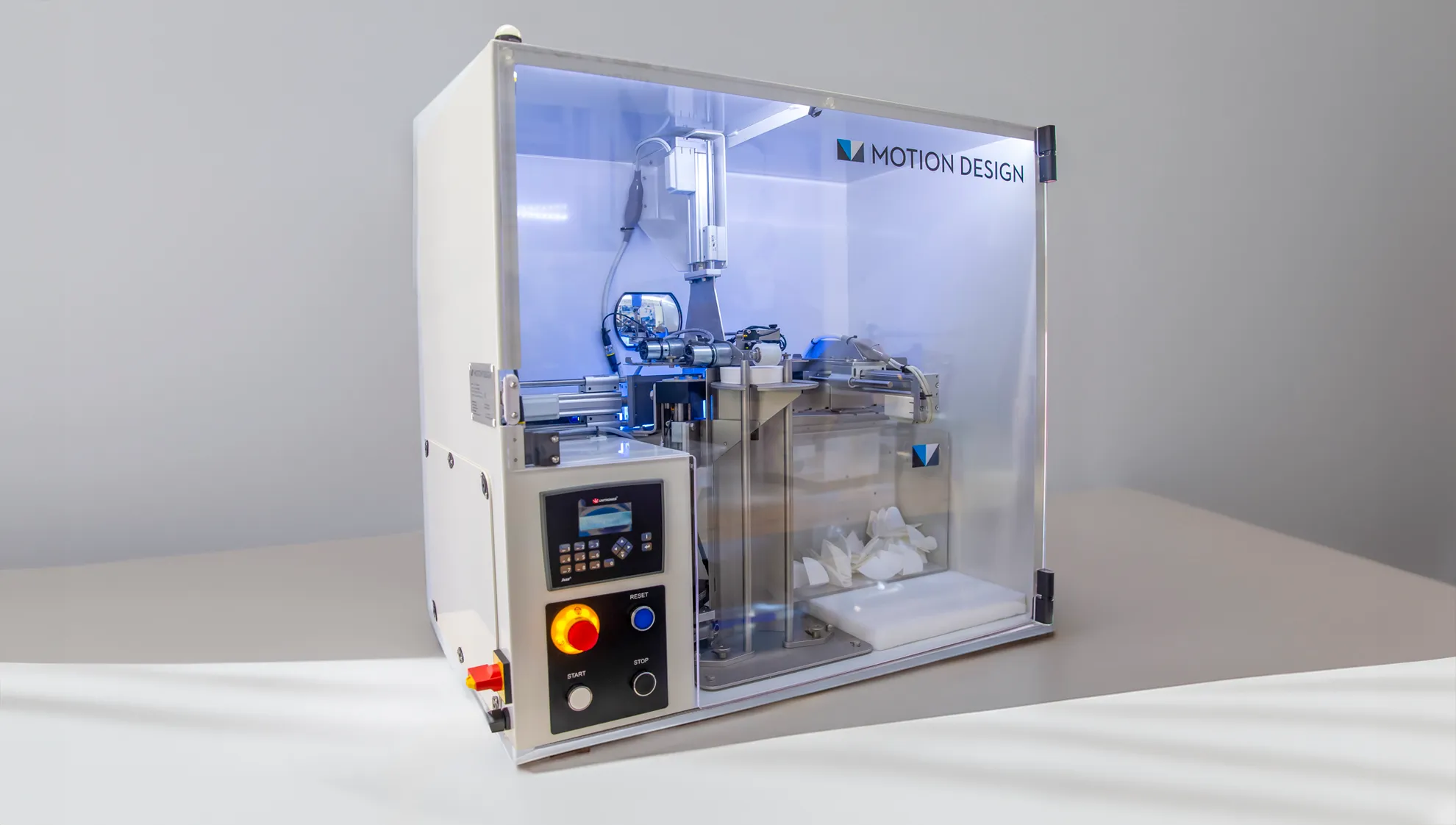

The Motion Design 2 Fold Filter Paper Folder is an automation solution for modern laboratory environments. It is designed to replace repetitive and time-consuming manual filter paper preparation with consistent, accurate folding while keeping papers clean and ready for use. Designed for laboratory environments, it improves efficiency and reduces manual handling in routine filtration tasks.
Key Features & Benefits
- Frees up laboratory technicians
- Reduces repetitive strain injuries in operators
- Repeatable and accurate folding
- Keeps filter papers clean and reduces contamination
- Small footprint design easily fits on a bench top
Find out more: Contact Us
Operation

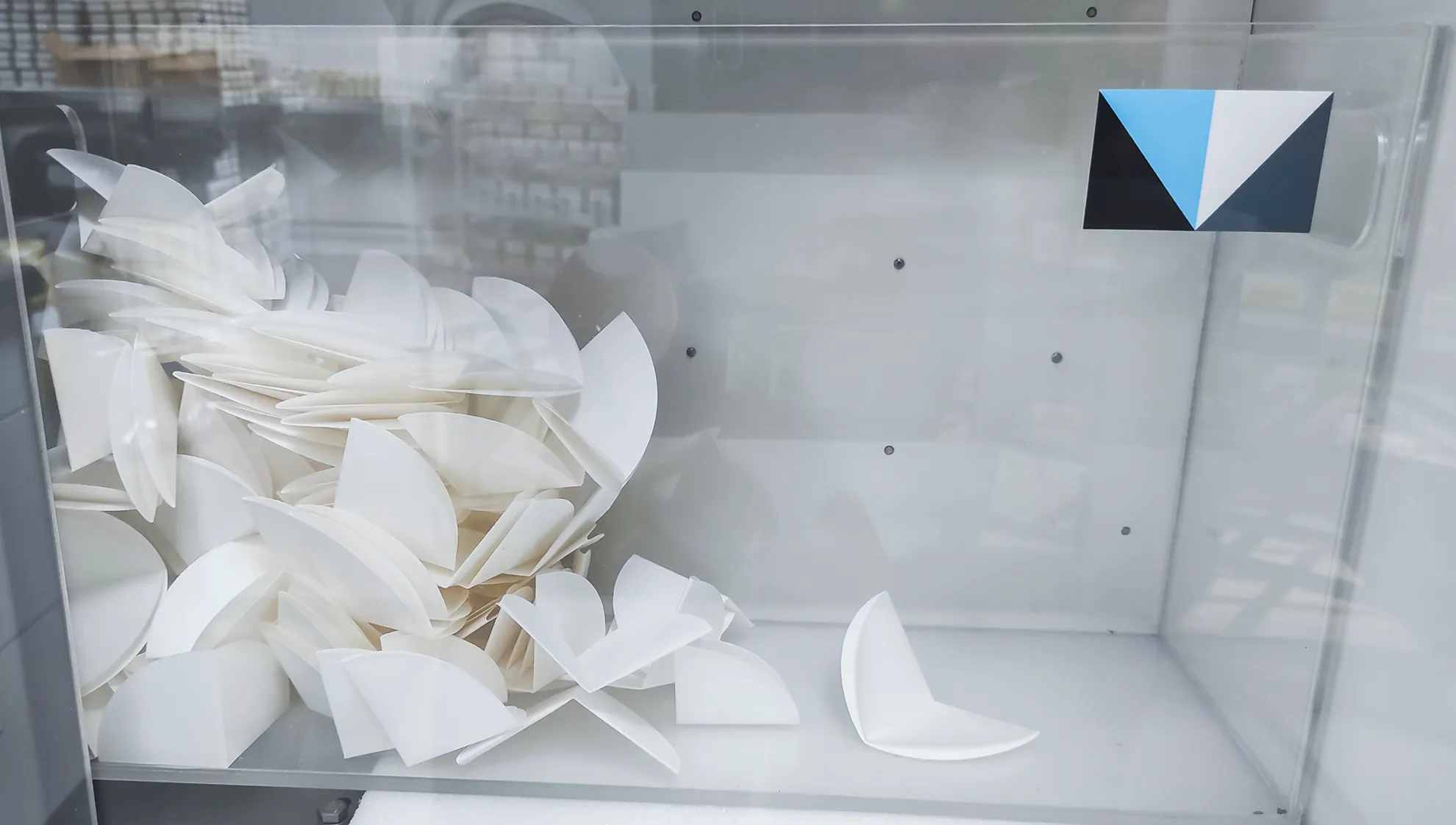

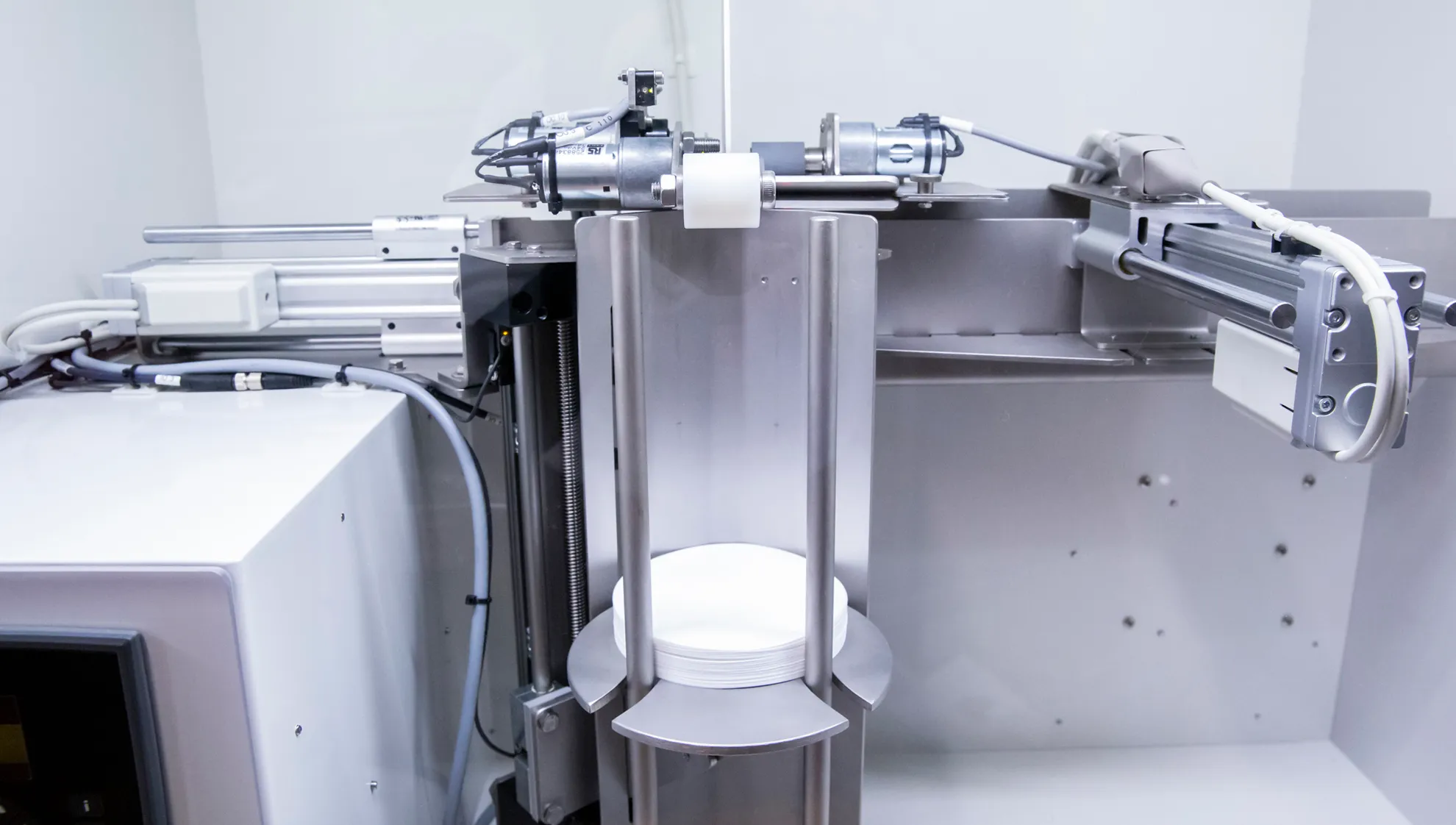

Unfolded filter papers are loaded into the machine, where they are automatically folded into quarters (2-fold). The folded papers can then be easily opened into a cone shape for filtration use.
The system accepts filter papers from 90 mm to 150 mm in diameter and can process up to 1000 papers of a single size per batch.
The enclosed design supports clean and quiet operation. Contact us to confirm compatibility with the filter papers used in your laboratory.
Technical Information
Throughput | ~486 folded papers per hour |
Folding Time | ~7.4 sec / paper |
Capacity | ~1000 unfolded papers |
Supported Papers | Filter papers from 90 mm to 150 mm in diameter |
Power | 220 - 240 VAC ± 10%, 50 - 60 Hz 10A |
Dimensions | 860W x 550D x 775H |
Weight | 50kg (approx) |
Standards | AS/NZS 4024:2014, IEC60204-1:2016, ISO 13849-1:2015, Regulation 2023/1230/EU - Machinery |
Note: Specifications above subject to change without prior notice
