All-In-One Palletising Solution
DOBOT All-In-One Palletising Solution
Automated End-of-Line Efficiency for Every Payload
The DOBOT Palletising Solution is a high-performance, plug-and-play workstation designed to eliminate repetitive manual handling and manage heavy lifting in busy production environments. Whether your line requires precision pick and place tasks or high-volume stacking, we offer both 10kg and 20kg payload options to suit the specific demands of your factory or packaging line.

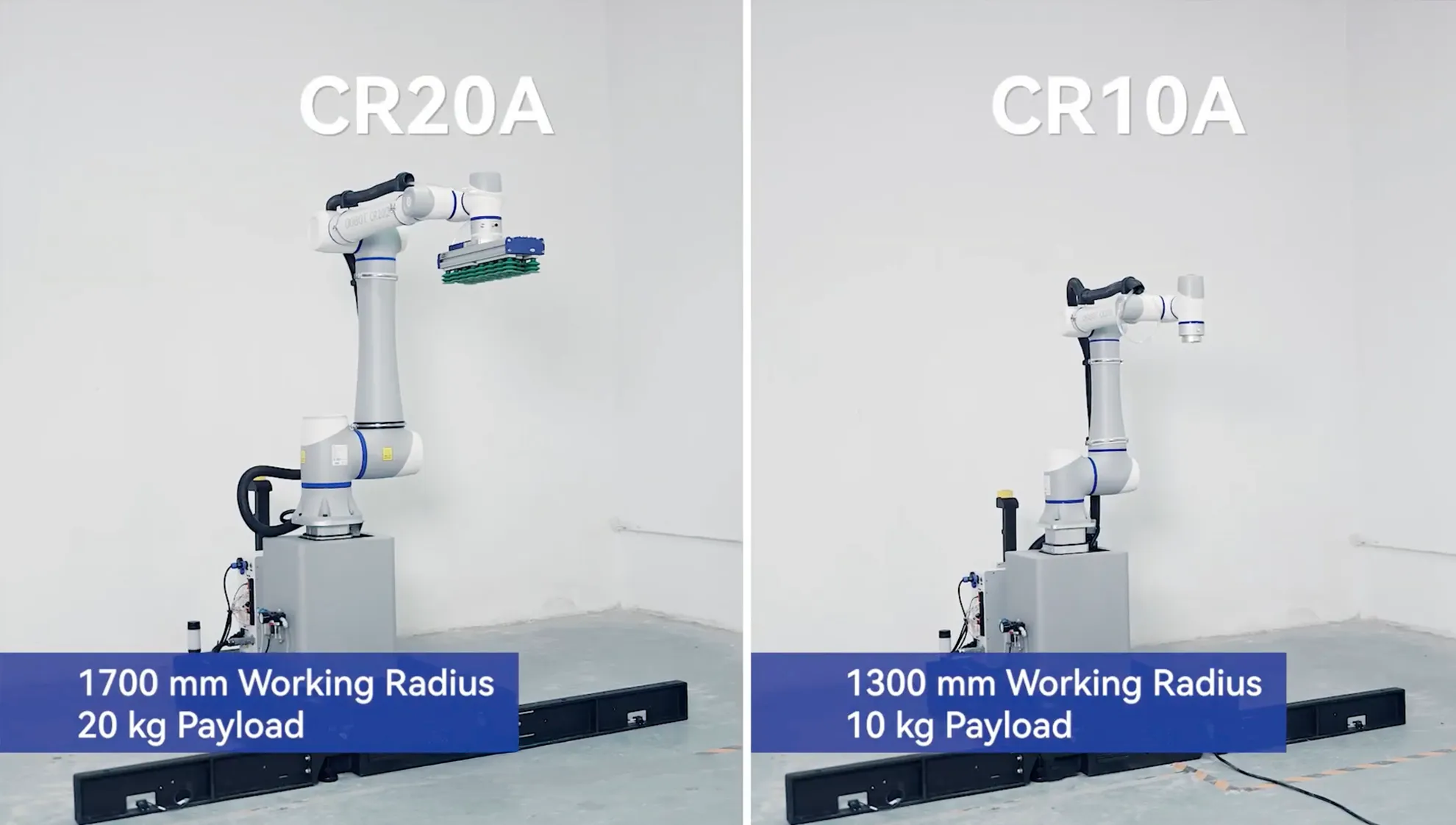

The system utilises the CR10A or CR20A cobots with a modular ecosystem, this solution enhances operational safety and boosts throughput across the food, beverage, pharmaceutical, and logistics industries. Get in touch with us at Motion Design to see which solution is right for your requirements.
Application Uses

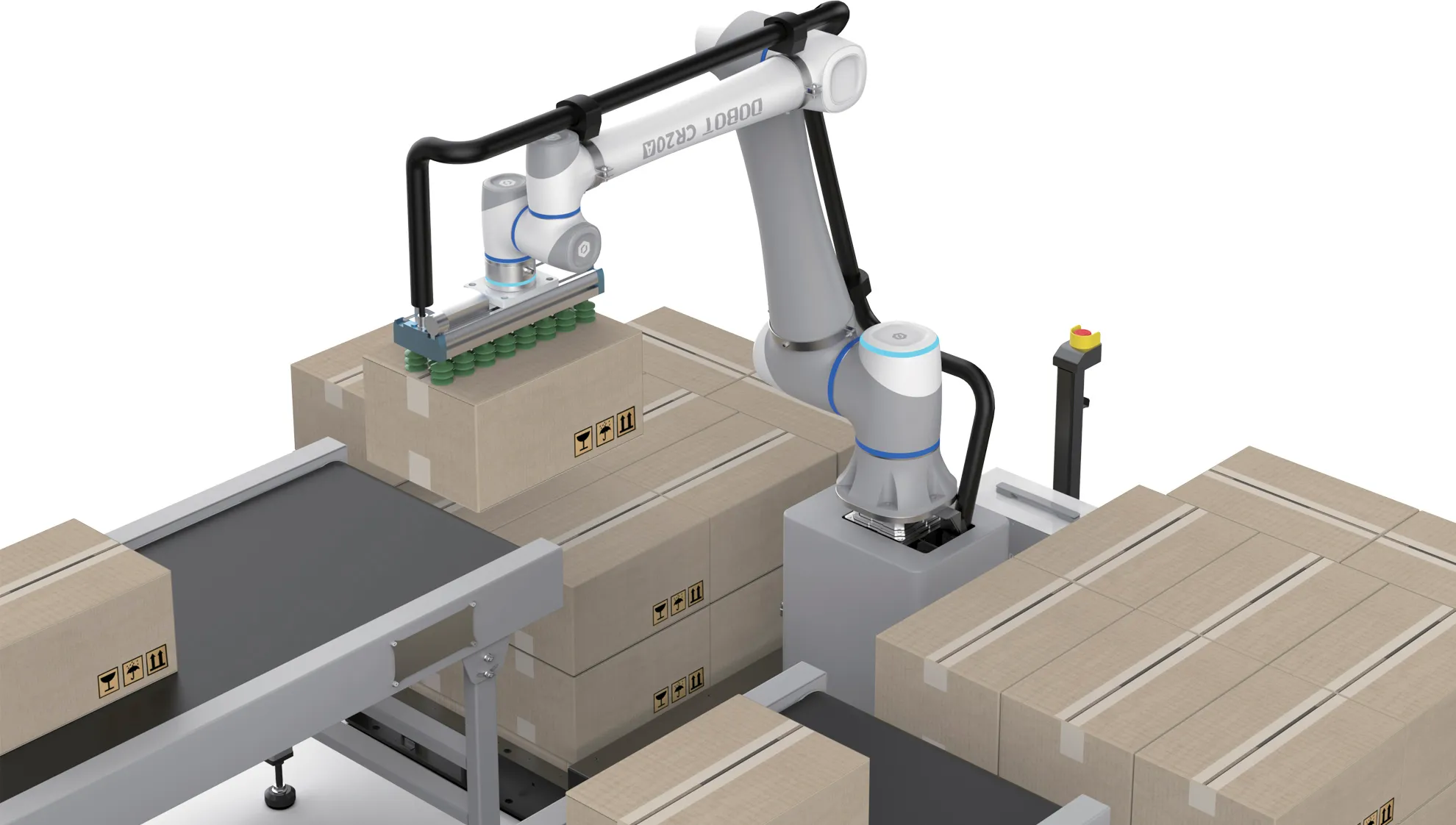

The system automates palletising tasks, providing seamless stacking of goods in industries like logistics, manufacturing, and warehousing.
- Automated Palletising: Seamless stacking of goods for transport.
- High-Speed Pick and Place: Rapid movement of items from conveyors to trays or boxes.
- Material Handling: Streamlining workflows in logistics, manufacturing, and warehousing.

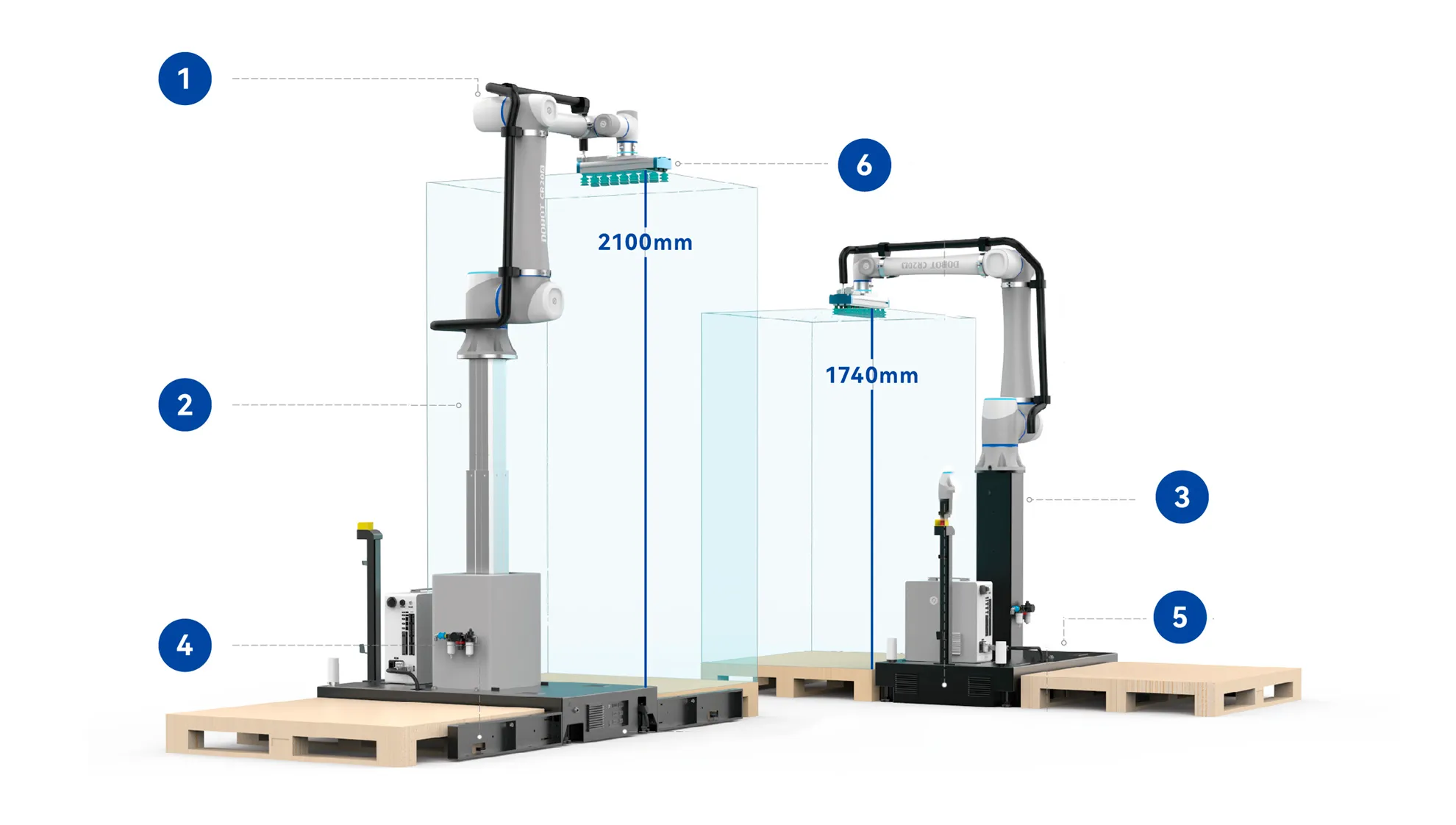

CR20A Paletising System
- Dobot CR20A: This robot has a maximum payload / lifting capacity of 20kg and a working radius of 1700mm

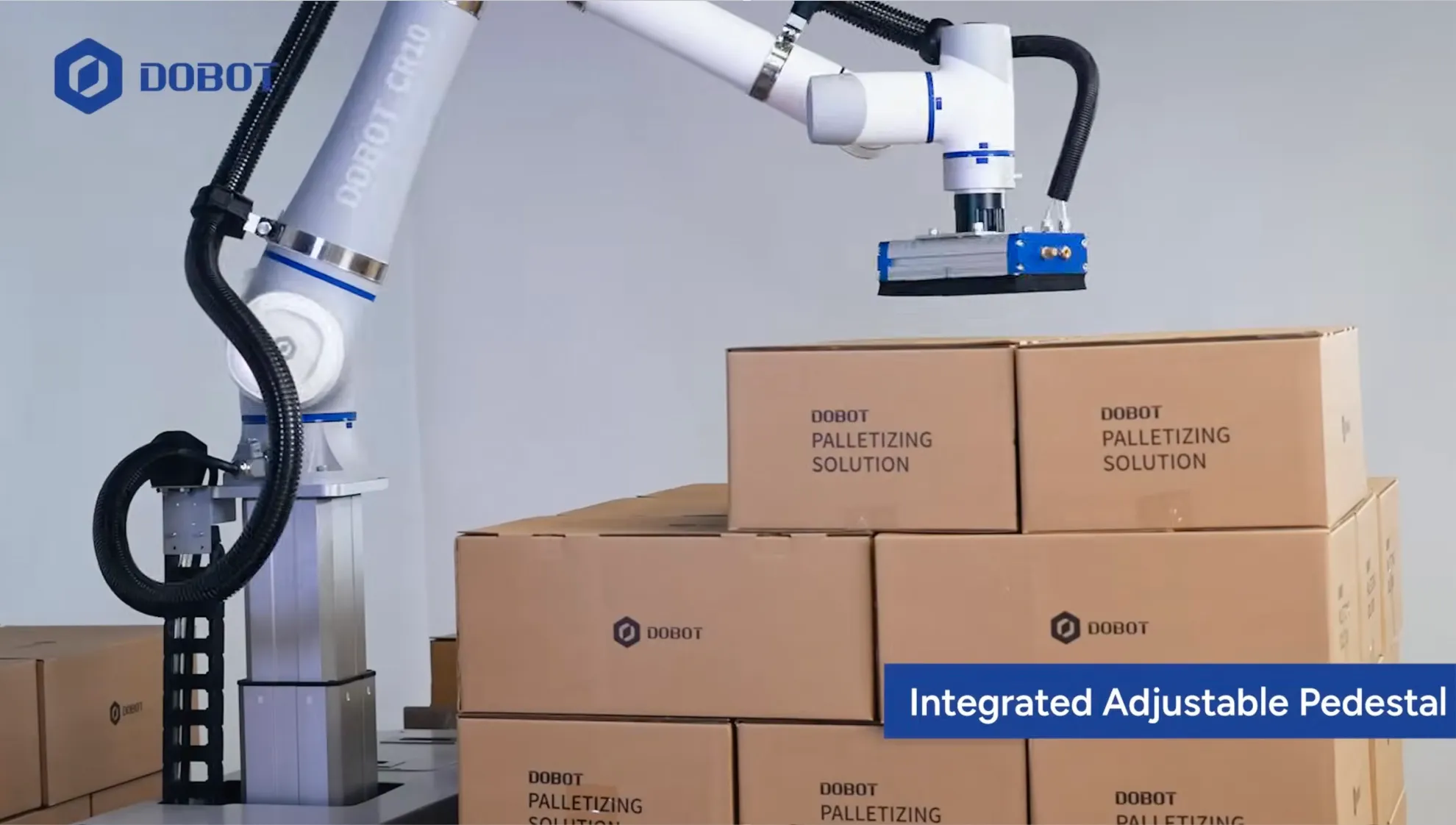

- Lifting Axis: can lift to a height of 900mm. Maximum paletising height can reach 2100mm
- Fixed Column: option designed for a fixed height of 1150mm. Can reach a maximum paletising height of 1740mm
- Pallet Detection and Positioning Device: Identifies existence of pallets and verifies its correct position
- Standard Palletising Base: Equipped with electrical control and communication systems to ensure seamless integration
- End Effector: Vacuum suction to ensure safe pick up of items
System Capabilities & Performance
High-Capacity Stacking
The system is engineered for large-scale logistics, capable of handling payloads up to 20kg (when using the CR20A) and stacking to a maximum height of 2100mm. This ensures stable, multilayer stacking patterns for even the largest pallet requirements.
Speed & Throughput
Utilising the latest CR Series cobots, the workstation delivers a high-pace workflow with speeds reaching 8-13 pieces per minute. This significantly accelerates the transition from packaging to dispatch while maintaining industry-leading accuracy.
Key Advantages
- Plug-and-Play Deployment: The modular layout facilitates swift installation, allowing the system to be operational in a fraction of the time required for traditional industrial robots.
- Intuitive "No-Code" Operation: Designed for ease of use, the software allows operators to set up pick and place and palletising routines without any prior programming expertise.
- Flexible Industrial Fit: Thanks to its compact footprint and operational flexibility, the system fits seamlessly into existing setups without requiring significant infrastructure changes.
Multi-Layer Safety & Compliance
Safety is at the core of the DOBOT workstation, featuring several layers of protection to allow for true human-robot collaboration:
- Virtual Walls: Define specific operating boundaries and "keep-out" zones to guarantee production safety in shared spaces.
- Seamless Integration: The robot connects to external safety equipment, including light curtains and safety gratings.
- International Certification: The system is fully compliant with global safety standards, including ISO 12100, EN 60204-1, ISO 10218-2, and ISO 13849-1.
