Automated Colony Counting System
Automated Colony Counting System
Petri Dish Handling, Microbial Colony Counting & Data Management
Motion Design’s Automated Colony Counting System streamlines Petri dish processing and colony counting in microbiology laboratories, helping increase throughput, reduce manual handling and improve consistency and traceability.
Designed around your laboratory workflow, the system combines automated Petri dish handling with an integrated colony counter and Motion Design software to manage samples, results and data throughout the counting process. Samples requiring further inspection can be identified for technician review, while colony count results and images are captured to provide a complete digital record.
Find out more: Contact Us
KEY BENEFITS
- Increase Laboratory Throughput
Process batches of Petri dishes through colony counting and sorting with minimal technician involvement. - Focus Technician Time Where It Is Needed
Automatically identify samples that may require further inspection and direct them to technician stations for review, reducing the need to manually inspect every dish. - Improve Testing Consistency
Standardise Petri dish handling and colony counting while flagging results that meet defined criteria for further review, helping reduce the risk of samples requiring attention being overlooked. - Maintain Complete Sample Traceability
Track each Petri dish throughout the automated process, with sample identification, batch information, colony counting results and images. - Access Results & Historical Data
Retain colony count images and associated sample and batch data, providing a searchable record for review and historical analysis. - Reduce Laboratory Waste
Automatically separate Petri dish lids for recycling while directing samples that no longer require further analysis to waste.
System Overview

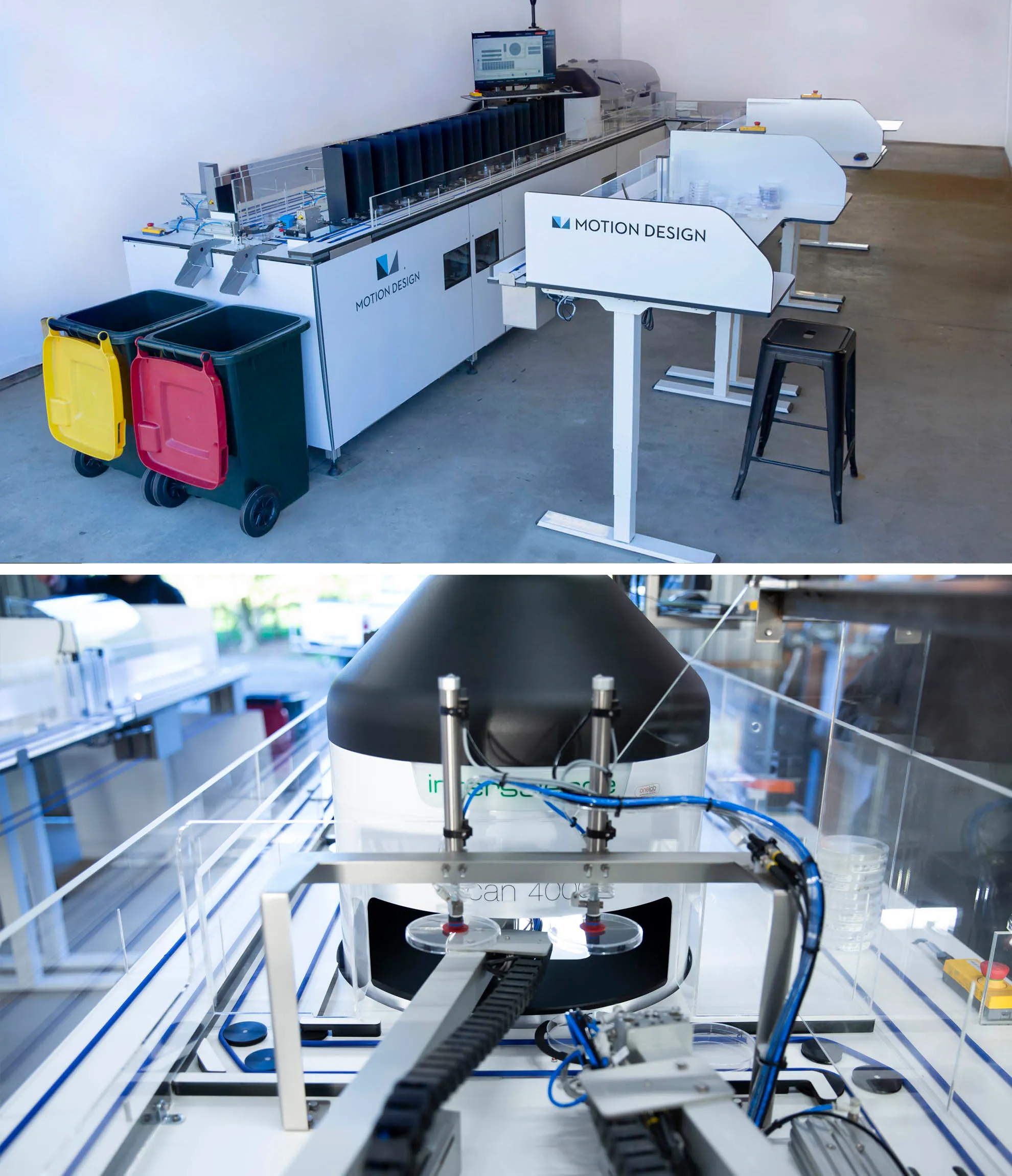

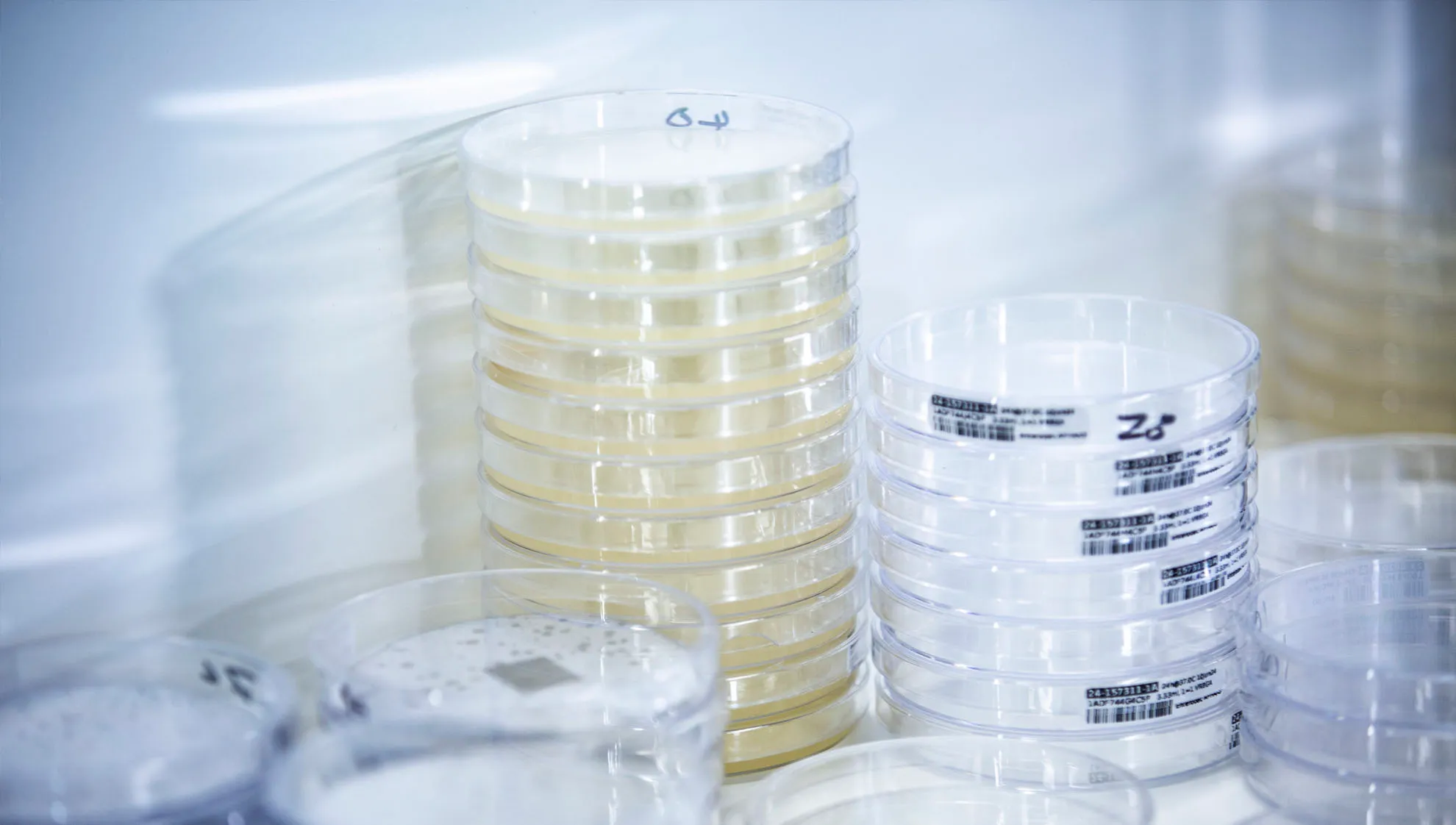

Petri dishes are loaded into the system in batches and automatically scanned to identify each dish and retrieve the relevant sample and test information. The lid is removed before the dish is presented to the integrated colony counter for imaging and analysis.
Motion Design software records the colony count, image and associated sample data, while identifying results that may require further inspection. Following analysis, dishes are automatically sorted according to the laboratory workflow.
Samples requiring further inspection are transported by conveyor to technician stations for review. Remaining dishes are automatically sorted and stacked into the required batches or directed to waste.
Software, Data and LIMS Integration

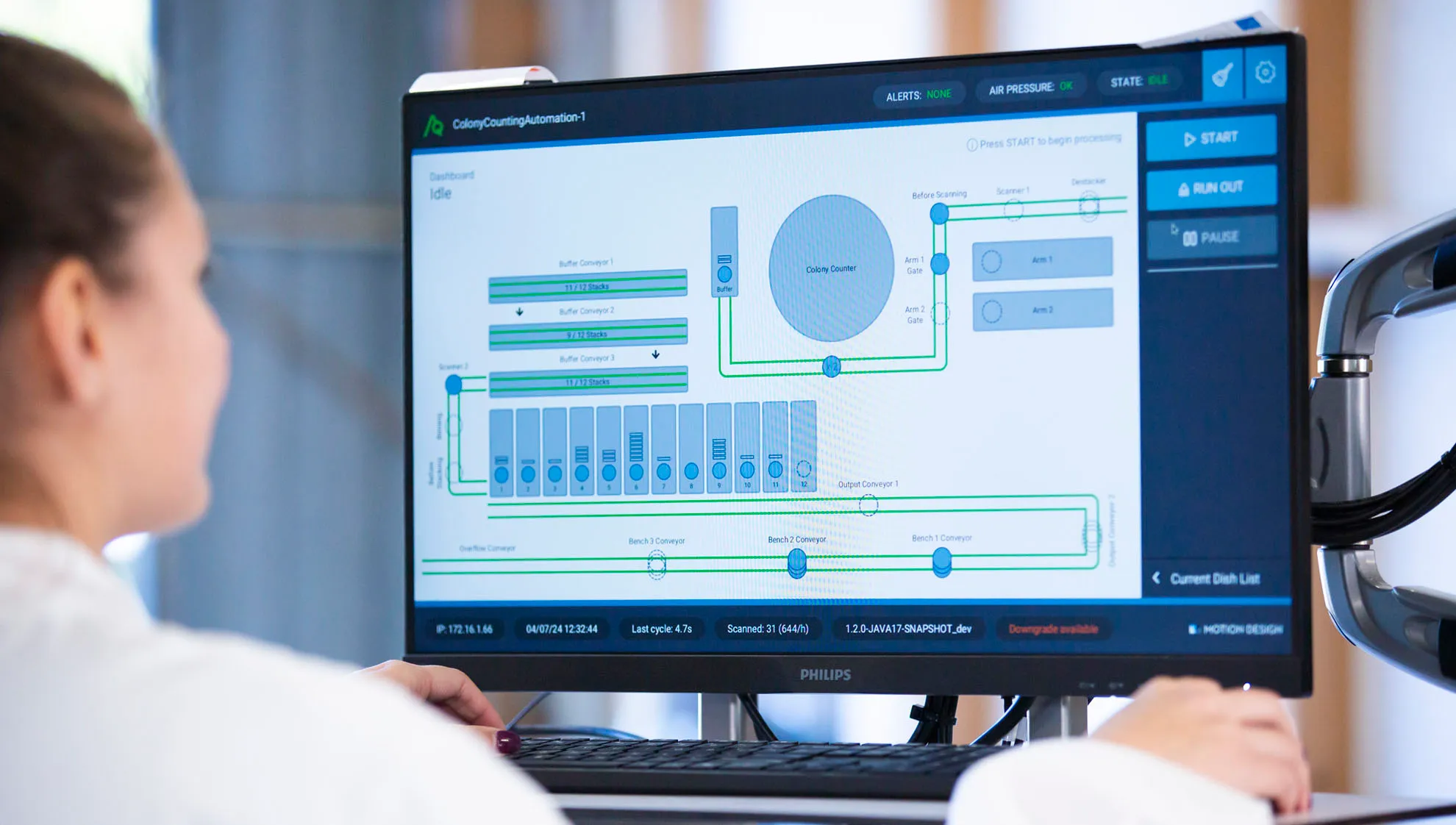

Motion Design software manages the automated workflow and provides the connection between the colony counting system, laboratory data and your Laboratory Information Management System (LIMS).
- LIMS Integration: Custom software enables seamless connection with your Laboratory management system.
- Full Traceablity: Complete records of samples, tests and user actions.
- Searchable History: Access database of sample data, test results and colony counting images.
- Result Review & Management: Technicians can request samples, generate reports, modify information and review colony count data in real time.
Key Features
- Customised Laboratory Workflow
Configured around your laboratory processes, testing requirements and sample handling workflow. - Automated Petri Dish Identification
Scans each Petri dish to identify the sample, batch and associated test information before processing. - Automated Lid Removal
Removes Petri dish lids before colony counting and separates lids for recycling. - Integrated Colony Counter
Automatically presents Petri dishes to an integrated colony counter (such as Interscience) for imaging and colony enumeration. - Automated Sorting & Stacking
Sorts and stacks Petri dishes following analysis according to test results and laboratory workflow requirements. - Technician Review Stations

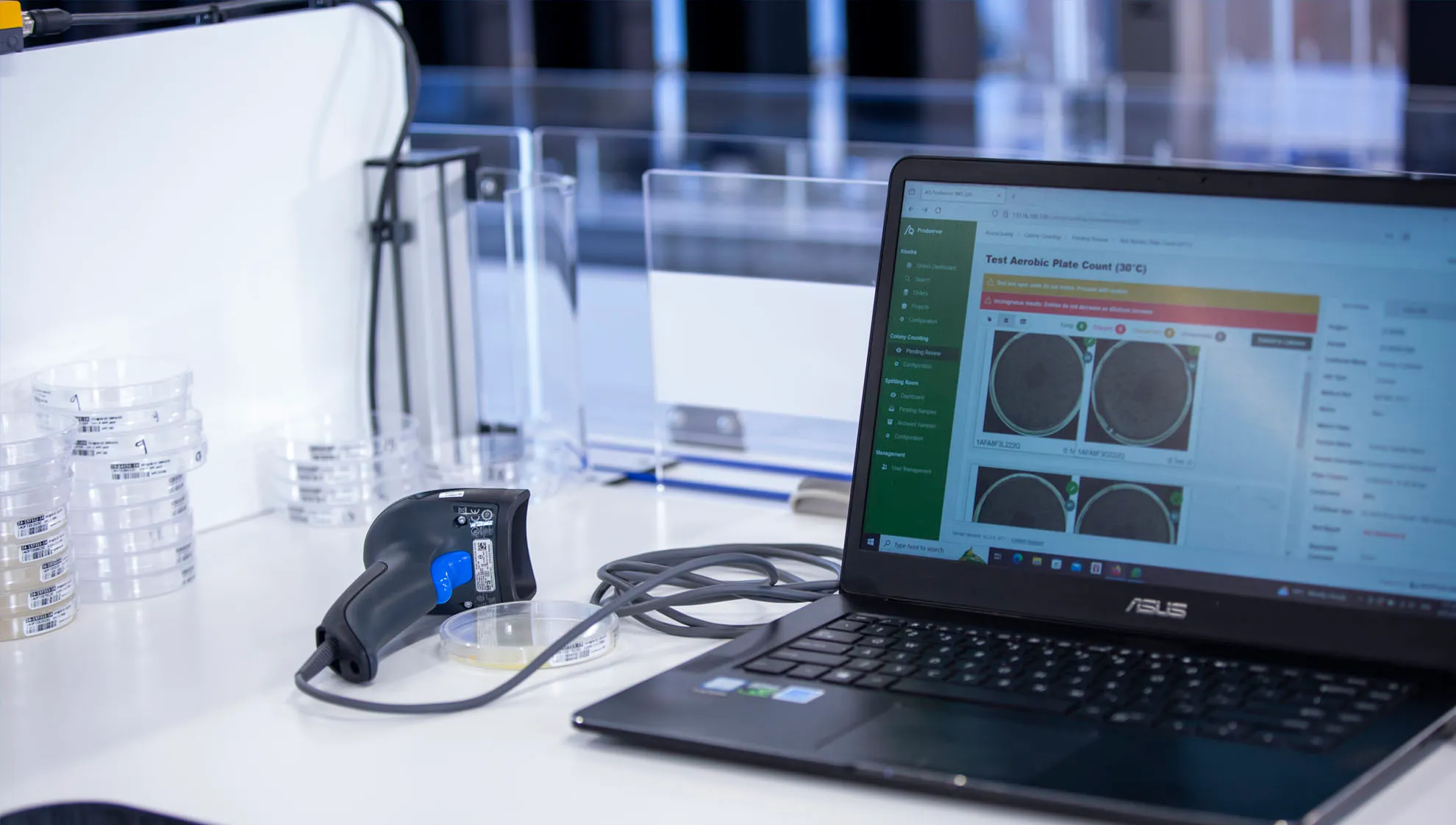

Samples requiring further inspection are automatically transported to dedicated technician stations for manual review. - Automated Waste Handling
Samples that no longer require further analysis can be automatically directed to waste.
Technical Information
Integration | Interscience colony counter vision system (other brand integration available on request) |

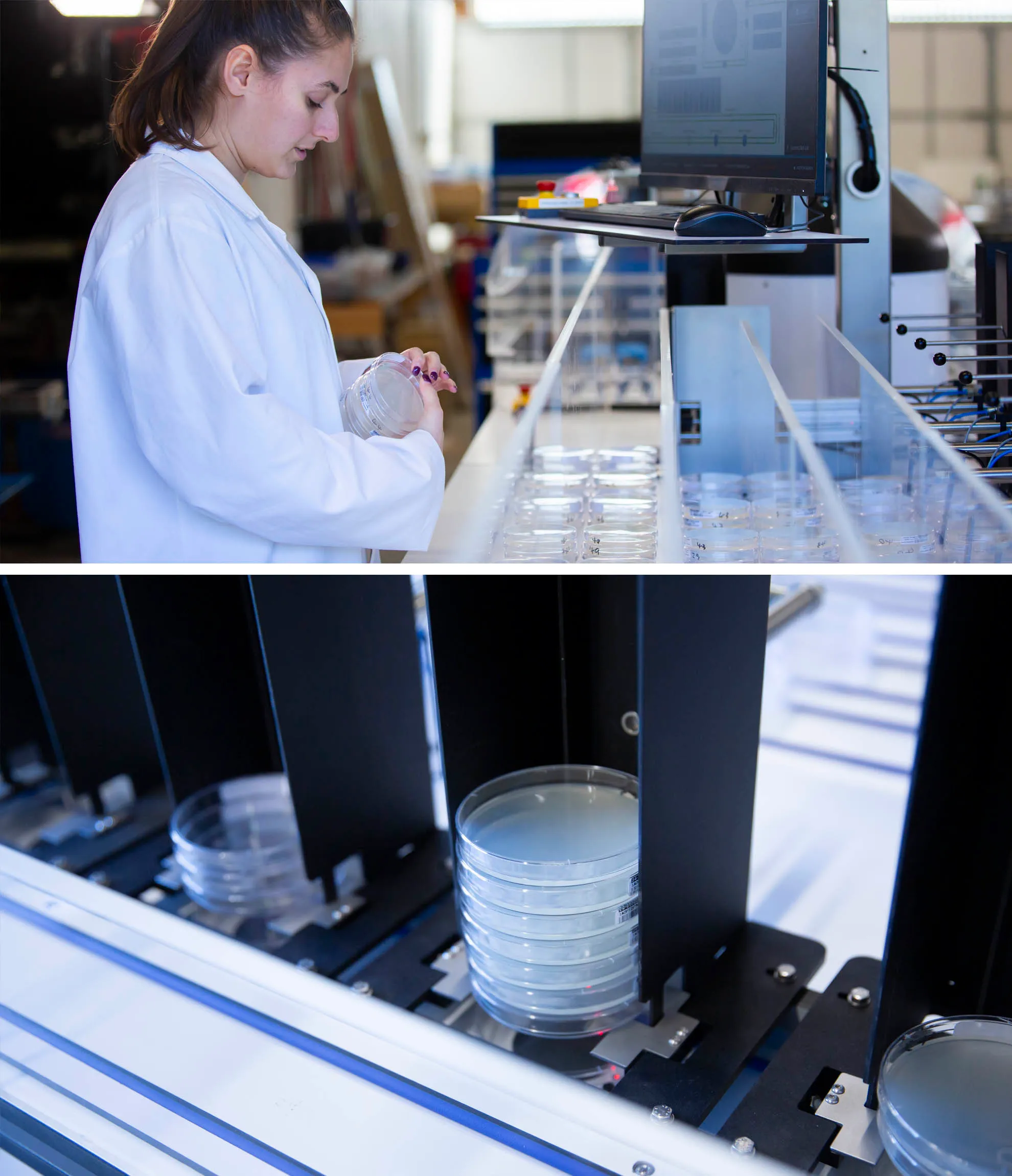

Dimensions | Can be customised to your laboratory layout and workflow |
Materials | Stainless steel and Trespa® laboratory work surfaces, providing durable, hygienic surfaces |
Capacity / Speed | ~600 dishes / hour depending on final design and workflow |
Compressed air supply | 6 bar, clean and oil-free, Nitrogen - lab supplied |
Power supply | 220 – 230 VAC, 50 Hz |
Dimensions | Customised to suit your laboratory requirements |
Standards | AS/NZS 4024:2014, IEC60204-1:2016, ISO 13849-1:2015, Regulation 2023/1230/EU - Machinery |
Note: Specifications above subject to change without prior notice
