Liquid Dispenser
Liquid Dispenser

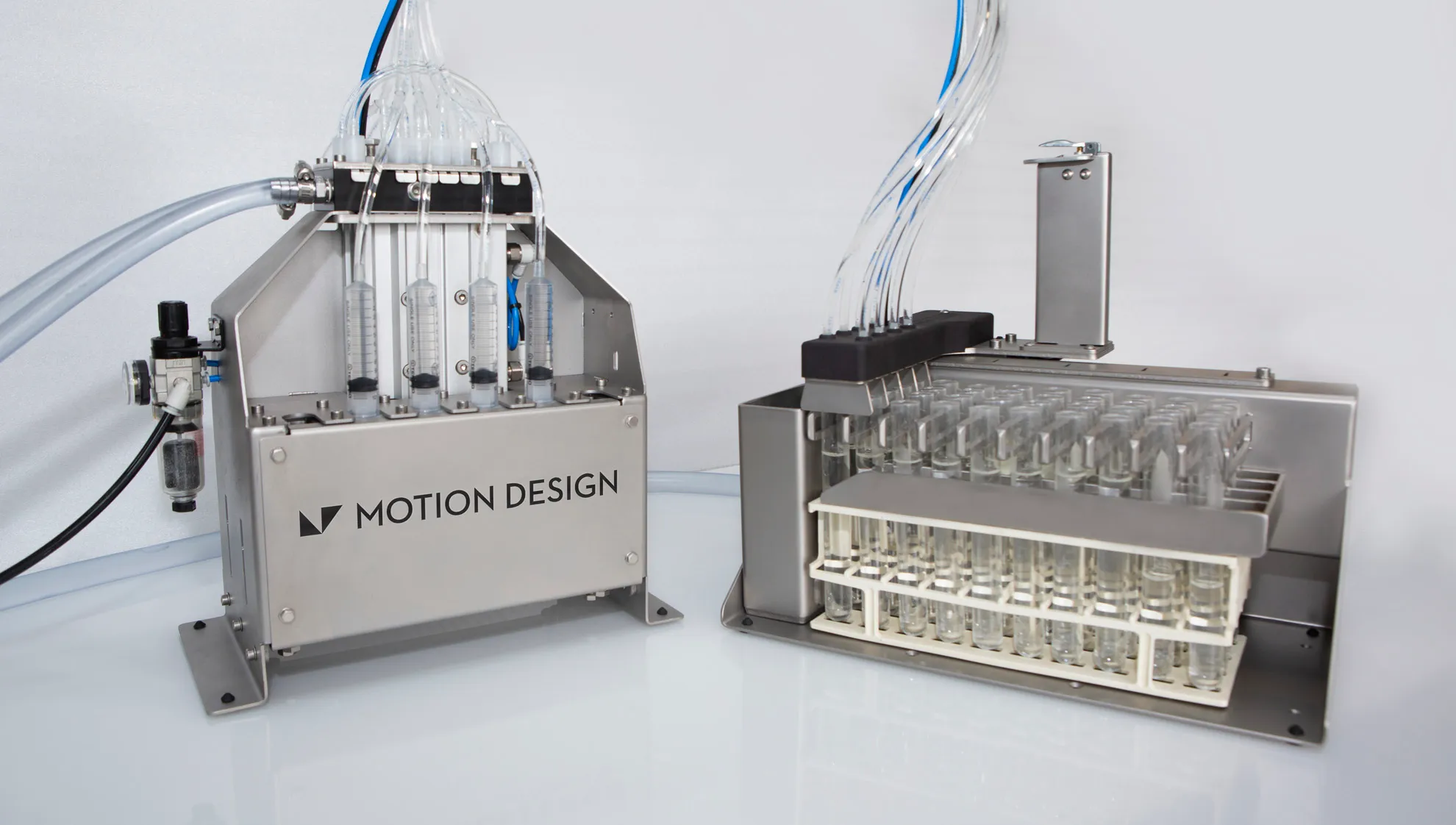

The Motion Design Liquid Dispenser is designed for accurate liquid dispensing into multiple vials or test tubes simultaneously. Drawing from a bulk supply, the system delivers consistent volumes across all channels, supporting reliable and repeatable laboratory sample preparation and dilution workflows.
The unit operates entirely pneumatically, providing a simple and robust solution for laboratories seeking to improve consistency while reducing manual handling.
Key Features
- Multi-channel liquid dispensing system with selectable preset volumes
- Two sizes available - 10ml and 50ml syringe volume
- Available in 8, 10, or 12 channel configurations
- Free wand or guided wand options to suit workflow requirements
- Guided configuration enables two row dispensing per cycle
- Fully pneumatic actuation (no electrical connections required)
- Designed for easy cleaning and purge cycles
- Configurable and customisable for specific applications
Find out more: Contact Us
Key Benefits
- High repeatability and accuracy (± 0.1 mL with 99% confidence)
- Improves efficiency in sample preparation and dilution workflows
- Simultaneous multi-vial filling increases laboratory throughput
- Reduces manual pipetting and repetitive strain
- Simple pneumatic system ensures reliable, low-maintenance operation
- Easy to purge, clean, and maintain
- Manufactured from chemically inert materials for compatibility with reactive liquids
- Small footprint design easily fits on a bench top
How It Helps
- Standardises liquid handling processes to improve result consistency
- Reduces variations in manual dispensing and dilution steps
- Increases efficiency in high-throughput laboratory environments
- Frees up technicians for higher value analytical tasks
- Supports safe and controlled handling of reactive or sensitive liquids
Technical Information
Machine Cycle Time | ~1 minute |
Syringe Volume Options | 10ml - Dispenses 1-11ml 50ml - Dispenses 10-50ml from a bulk supply |
Compressed Air | > 6 bar, clean and oil-free |
Dimensions | 1250 W × 550 D × 1500 H (mm) |
Weight | ~22 kg |
Note: Specifications above subject to change without prior notice
